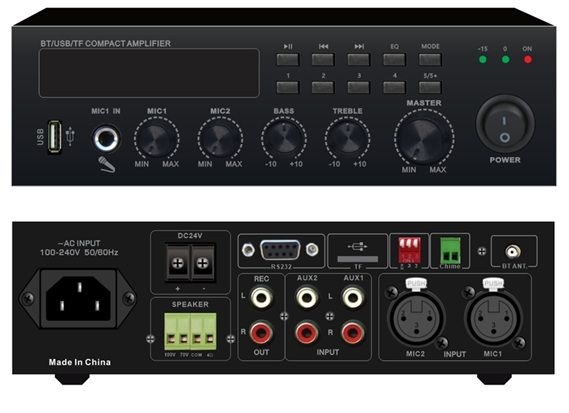

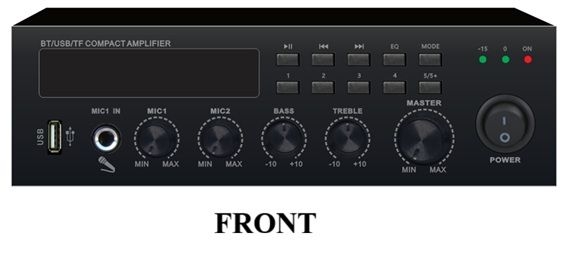

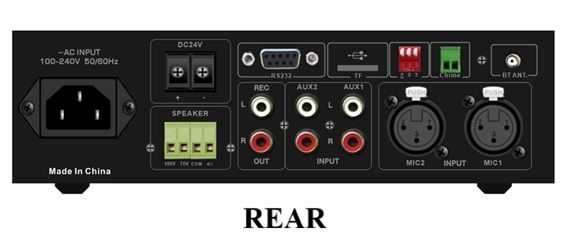

SNAV Compact Size 60W / 120W / 240W Power Mixing Amplifier
(NAY-60CM/ NAY-120CM/ NAY-240CM)
Description:
- Black aluminium alloy panel, high-end and elegant
- Silicone buttons, soft and durable, comfortable to the touch, and highly plastic.
- Using CLASS D amplifier circuit, low heat generation and high efficiency
- Five signal inputs (2 lines, 3 microphones)
- Two phantom power microphones, switches are controlled separately, can drive phantom power microphones
- Bluetooth, USB, FM, TF card interface, automatic playback function when powered on
- LED 7-digit digital tube display
- With infrared remote control operation function
- Independent volume adjustment of each channel
- Independent adjustment of treble and bass
- The power supply adopts high-performance switching power supply circuit, low heat generation and high efficiency
- It has perfect output short circuit protection, DC protection, high temperature protection and other functions
- Desktop and rack-mount installation options
Specification:
| Model | FY-60CM | FY-120CM | FY-240CM |
| Rated Power | 60W | 120W | 240W |
Speaker Output Mode |
Low impedance:4-16 Ohms | ||
| Voltage line:70V & 100V | |||
| Compatible Media | USB, TF, FM, Bluetooth, AUX IN | ||
| Microphone Input | MIC1/MIC2: 600 ohms(Ω) 10 mv, MIC1/MIC2 (balanced), MIC1 front (unbalanced) | ||
| Line Input | AUX1/AUX2: 10K Ohms(Ω) 300 mv, unbalanced | ||
| Auxiliary Output: | 0.775V (0 dB) | ||
| Frequency Response | 60Hz~18KHz (±3dB) | ||
| Distortion THD | <0.5% at 1KHz, 1/3 rated output power | ||
| SNR | AUX:>80 dB, MIC:>65dB | ||
| Tone | Bass: 100 Hz (±10dB), Treble: 10KHz (±10dB) | ||
| Power Supply | AC100V~AC240V±10% 50-60Hz | ||
| Power Consumption | 90W | 160W | 290W |
| Dimension | 63(H)×215(W)×285(D) mm | ||
| Packing Size | 135(H)×290(W)×325(D) mm | ||
| Net Weight | 1.8KG | 2.5KG |
3KG |
| Gross Weight | 2.5KG | 3.2KG |
3.5KG |
